COB LED STRIP / COB-020

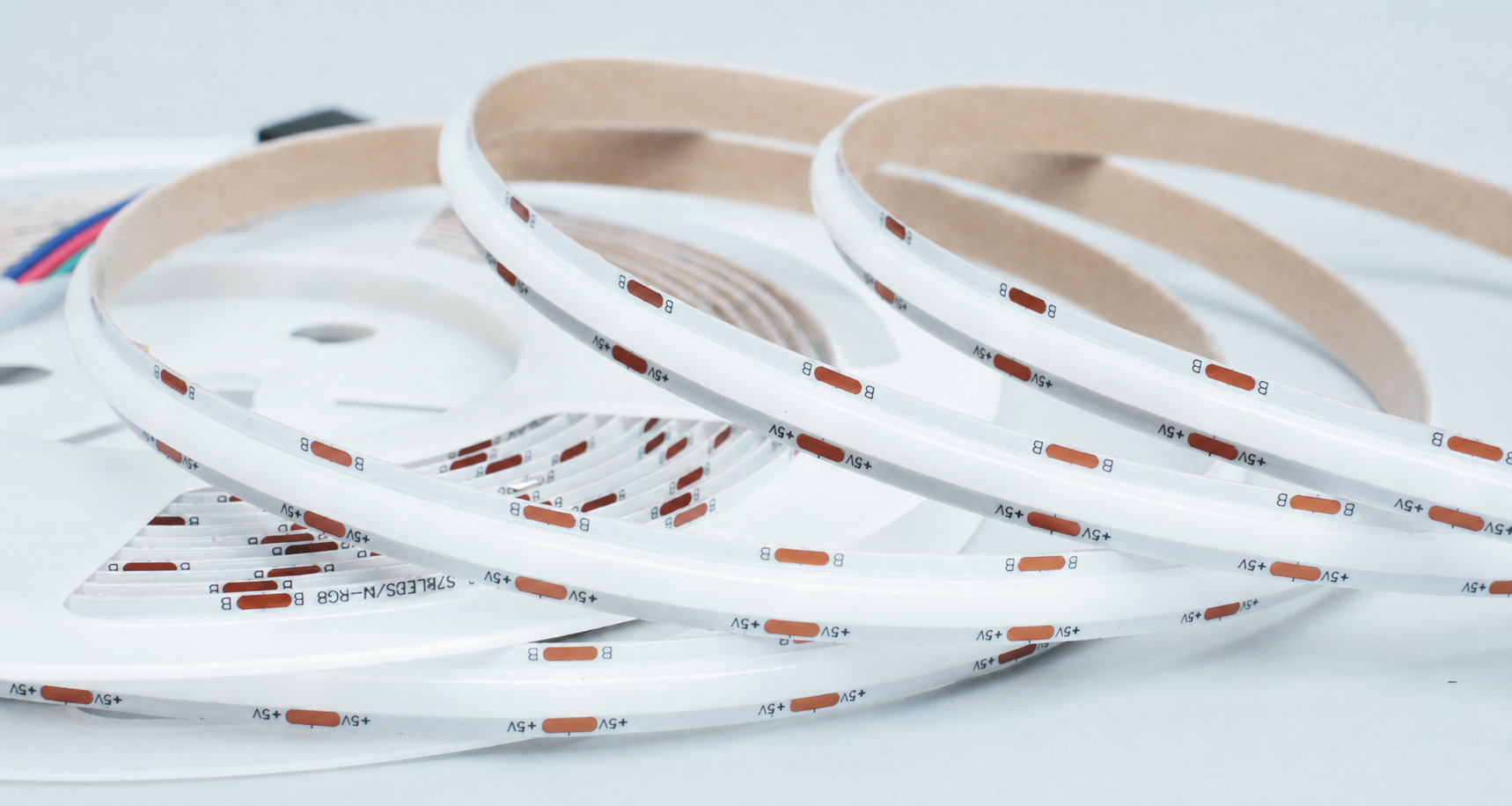

5V 8 mm RGB COB LED Strip
576D RGB · 5V version
5V rgb COB LED strip, 576D RGB · 5V version, with a 8 mm PCB and 20 mm cutting interval. Stated RGB wavelengths: 620nm/520nm/460nm. Match the configuration to the installation, supply and controls.
At a glance576D
- Input voltage
- 5V
- PCB width
- 8 mm
- Cutting interval
- 20 mm
- Light configuration
- RGB
8 mm PCB
Check the installation space against the 8 mm PCB. 576D RGB · 5V version.
20 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
RGB
Stated RGB wavelengths: 620nm/520nm/460nm. Match the controls to the light-color configuration.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration5V · RGBYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
8 mm PCB
20 mm cutting interval
This model uses 2 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
576D RGB · 5V version
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-020 |
|---|---|
| Product version | 576D RGB · 5V version |
| Input voltage | 5V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | RGB |
| PCB width | 8 mm |
| Cutting interval | 20 mm |
| Stated power (source value) | 8W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 576PCS · reference length to confirmConfirm before ordering |
| RGB wavelengths | 620nm/520nm/460nm |
BEFORE YOU ORDER
Selection & ordering
- The stated 8W power and 576PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 5V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 20 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
