COB LED STRIP / COB-018

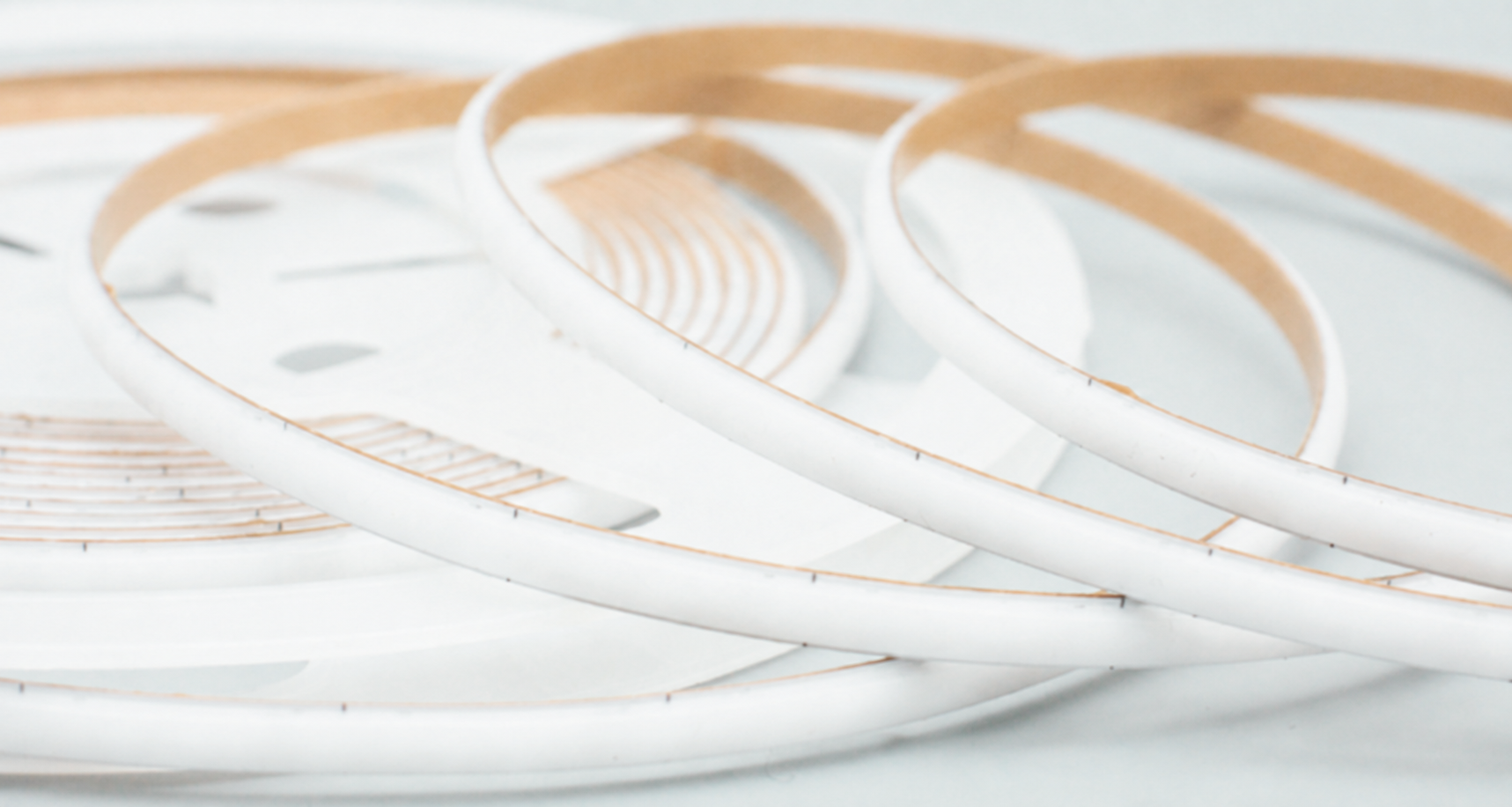

5V / 12V 5 mm RGB COB LED Strip
450D RGB · 5V / 12V versions
5V / 12V rgb COB LED strip, 450D RGB · 5V / 12V versions, with a 5 mm PCB and 20 mm cutting interval. Stated RGB wavelengths: 620nm/520nm/460nm. Match the configuration to the installation, supply and controls.
At a glance450D
- Input voltage
- 5V / 12V
- PCB width
- 5 mm
- Cutting interval
- 20 mm
- Light configuration
- RGB
5 mm PCB
Check the installation space against the 5 mm PCB. 450D RGB · 5V / 12V versions.
20 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
RGB
Stated RGB wavelengths: 620nm/520nm/460nm. Match the controls to the light-color configuration.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration5V · RGBYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
5 mm PCB
20 mm cutting interval
This model uses 2 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
450D RGB · 5V / 12V versions
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-018 |
|---|---|
| Product version | 450D RGB · 5V / 12V versions |
| Input voltage | 5V / 12V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | RGB |
| PCB width | 5 mm |
| Cutting interval | 20 mm |
| Stated power (source value) | 10W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 450PCS · reference length to confirmConfirm before ordering |
| RGB wavelengths | 620nm/520nm/460nm |
BEFORE YOU ORDER
Selection & ordering
- The stated 10W power and 450PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 5V / 12V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 20 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
