COB LED STRIP / COB-027
24V 10 mm Addressable RGB COB LED Strip
720D addressable RGB · 2811 IC
24V addressable rgb COB LED strip, 720D addressable RGB · 2811 IC, with a 10 mm PCB and 50 mm cutting interval. Stated RGB wavelengths: 620nm/520nm/460nm. Match the configuration to the installation, supply and controls.
At a glance720D
- Input voltage
- 24V
- PCB width
- 10 mm
- Cutting interval
- 50 mm
- Control IC (stated)
- 2811
10 mm PCB
Check the installation space against the 10 mm PCB. 720D addressable RGB · 2811 IC.
50 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Addressable RGB
The source identifies a 2811 IC. Confirm the controller, protocol, segment control and wiring for the required lighting effects.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.

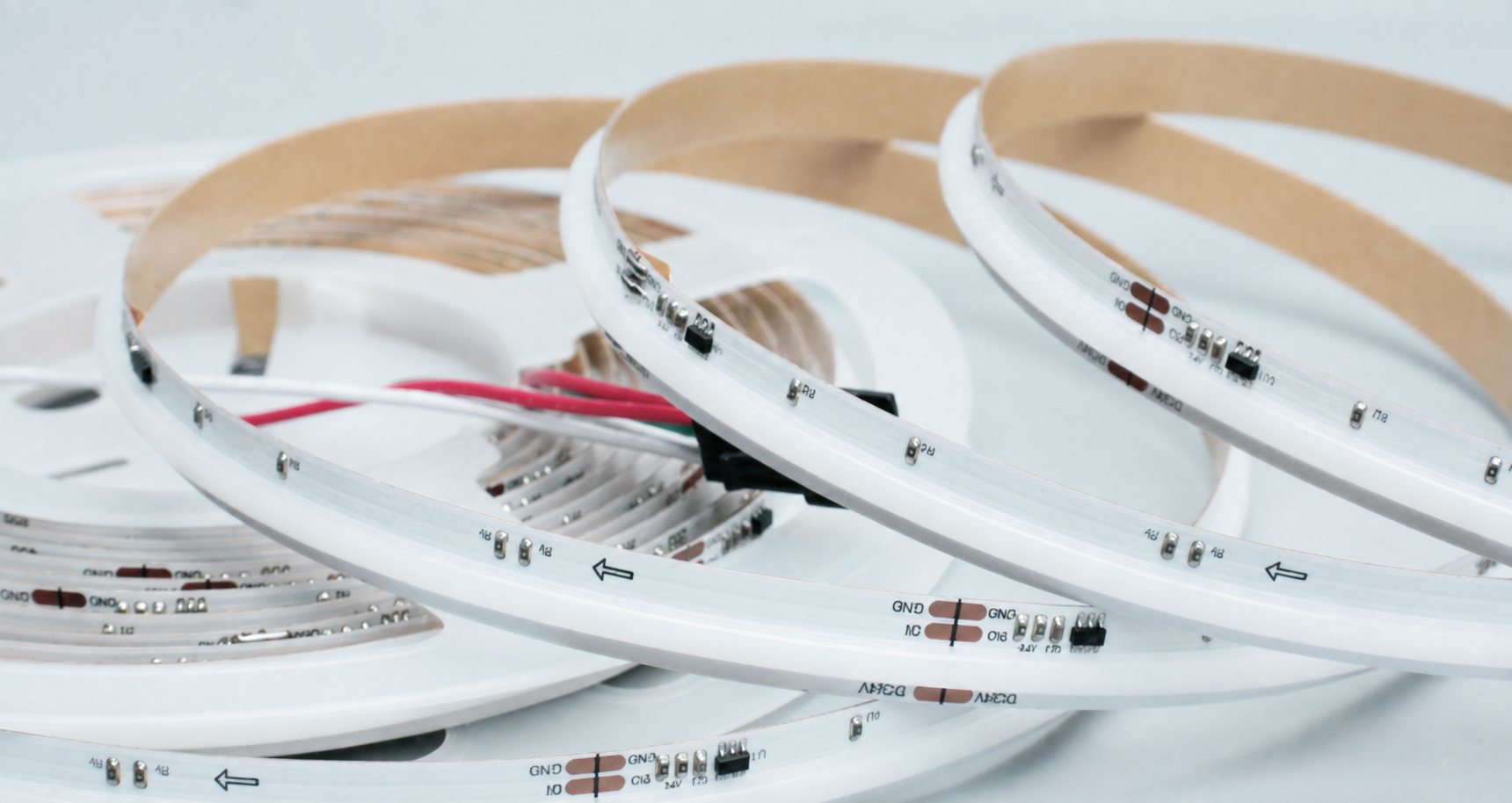

Selected configuration24V · Addressable RGBYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
10 mm PCB
50 mm cutting interval
This model uses 5 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
720D addressable RGB · 2811 IC
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-027 |
|---|---|
| Product version | 720D addressable RGB · 2811 IC |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Addressable RGB |
| PCB width | 10 mm |
| Cutting interval | 50 mm |
| Stated power (source value) | 12W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 720PCS · reference length to confirmConfirm before ordering |
| RGB wavelengths | 620nm/520nm/460nm |
| IC model (source marking) | 2811 |
| IC count (source value) | 2811-20 pcs · count reference length to confirmConfirm before ordering |
| Control protocol | Controller compatibility, wiring and protocol to confirmConfirm before ordering |
BEFORE YOU ORDER
Selection & ordering
- The stated 12W power and 720PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 50 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- The source IC entry is 2811-20 pcs. Confirm the count's reference length, controller protocol and wiring; the marking alone does not establish compatibility.
