COB LED STRIP / COB-026

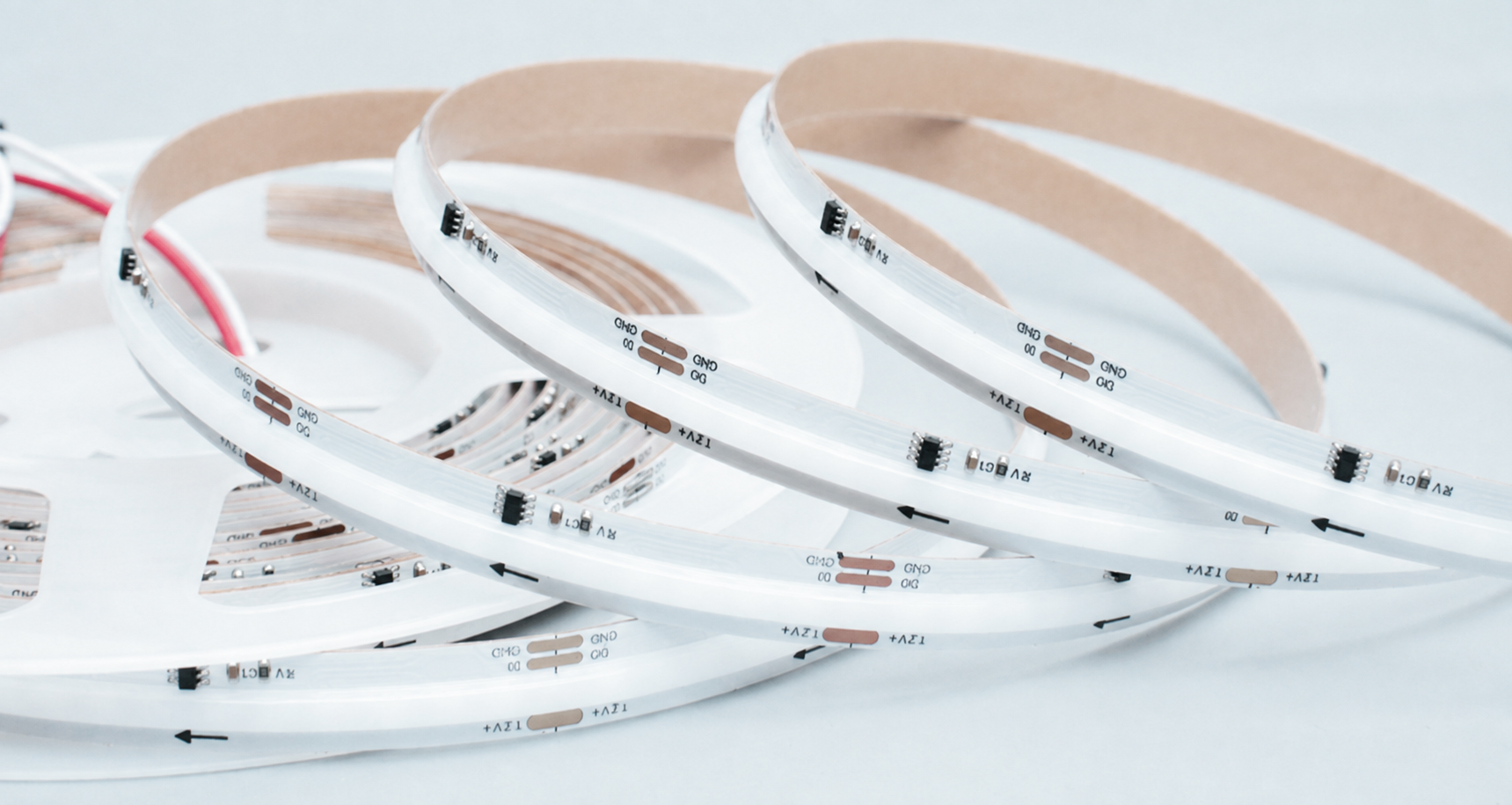

24V 10 mm Addressable RGB COB LED Strip
420D addressable RGB · 2811 IC
24V addressable rgb COB LED strip, 420D addressable RGB · 2811 IC, with a 10 mm PCB and 100 mm cutting interval. Stated RGB wavelengths: 620nm/520nm/460nm. Match the configuration to the installation, supply and controls.
At a glance420D
- Input voltage
- 24V
- PCB width
- 10 mm
- Cutting interval
- 100 mm
- Control IC (stated)
- 2811
10 mm PCB
Check the installation space against the 10 mm PCB. 420D addressable RGB · 2811 IC.
100 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Addressable RGB
The source identifies a 2811 IC. Confirm the controller, protocol, segment control and wiring for the required lighting effects.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration24V · Addressable RGBYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
10 mm PCB
100 mm cutting interval
This model uses 10 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
420D addressable RGB · 2811 IC
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-026 |
|---|---|
| Product version | 420D addressable RGB · 2811 IC |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Addressable RGB |
| PCB width | 10 mm |
| Cutting interval | 100 mm |
| Stated power (source value) | 12W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 420PCS · reference length to confirmConfirm before ordering |
| RGB wavelengths | 620nm/520nm/460nm |
| IC model (source marking) | 2811 |
| IC count (source value) | 2811-10 pcs · count reference length to confirmConfirm before ordering |
| Control protocol | Controller compatibility, wiring and protocol to confirmConfirm before ordering |
BEFORE YOU ORDER
Selection & ordering
- The stated 12W power and 420PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 100 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- The source IC entry is 2811-10 pcs. Confirm the count's reference length, controller protocol and wiring; the marking alone does not establish compatibility.
