5050 RGB
SMD 5050 with 60 LEDs/m. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-026
SMD 505060 LEDs/m · RGB
SMD 5050 RGB LED Strip · 60 LEDs/m · 12 W/m. 5050 RGB version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 12V / 24V
- Rated power
- 12 W/m
- LED density
- 60 LEDs/m
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Compatible dimming controls
Adjust brightness with compatible supplies and controls. Confirm the control protocol and dimming method for the actual configuration.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Pending confirmation: PCB width. Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-026 |
|---|---|
| Product version | 5050 RGB |
| Input voltage | DC 12V / 24V |
| LED package | SMD 5050 |
| LED density | 60 LEDs/m |
| Rated power | 12 W/m |
| Type / function | RGB |
| PCB construction | double-sided PCB |
| Cutting | Cut at designated marks; confirm interval by voltage version |
PROTECTION OPTIONS
Protection for your environment.
These are optional protection versions. The product photograph alone does not establish the protection rating.
Clear silicone sleeve
Hollow silicone extrusion
Solid silicone extrusion
Protection depends on the selected version and correctly assembled end connections. Confirm the environment and installation requirements before ordering.
APPLICATION REFERENCE
Bring light into the space.

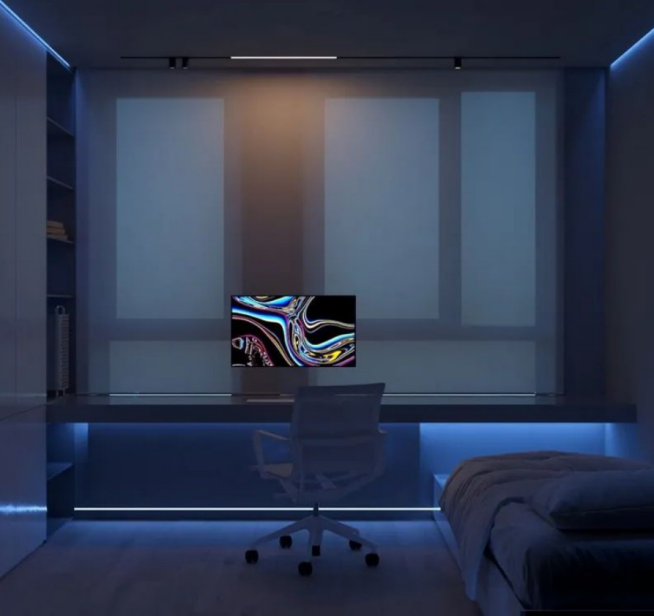

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
