5 mm single-LED cutting
SMD 2835 with 120 LEDs/m on a 5 mm PCB. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-018
SMD 28355 mm · 120 LEDs/m · Single-LED cutting
5 mm SMD 2835 Single-LED cutting LED Strip · 120 LEDs/m · 11 W/m. 5 mm single-LED cutting version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 24V
- Rated power
- 11 W/m
- LED density
- 120 LEDs/m
- PCB width
- 5 mm
- Color rendering
- CRI 85+
- Warranty
- 3 years, subject to warranty terms
PRODUCT OVERVIEW
Get to know this strip.
Single-LED cutting
One LED per cutting unit. Follow product markings and confirm compatible connections and accessories.
Match the supply and controls
Select compatible equipment for voltage, light color and power. Confirm the control configuration separately for each version.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-018 |
|---|---|
| Product version | 5 mm single-LED cutting |
| Input voltage | DC 24V |
| LED package | SMD 2835 |
| LED density | 120 LEDs/m |
| PCB width | 5 mm |
| Rated power | 11 W/m |
| Type / function | Single-LED cutting |
| PCB construction | 2550 copper / double-sided plated PCB |
| Color rendering | CRI 85+ |
| Warranty | 3 years, subject to warranty terms |
| Color temperatures | 2200K / 2400K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 12000K |
| Cutting | Single-LED cutting, at designated marks |
APPLICATION REFERENCE
Bring light into the space.

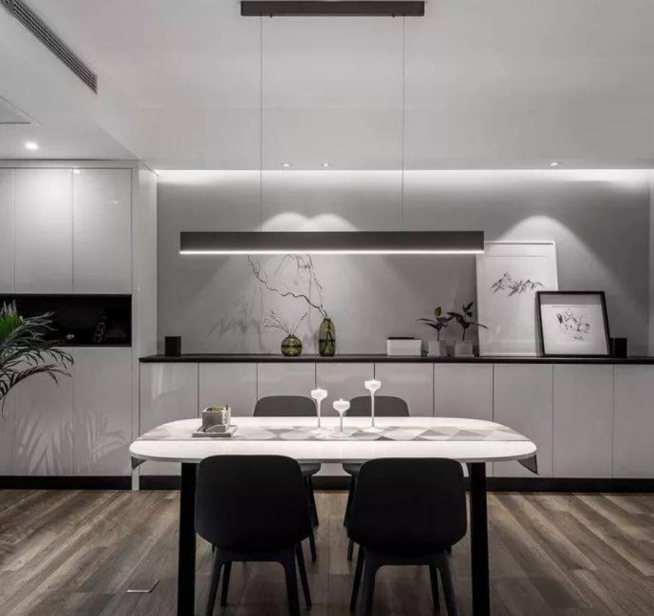

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
