COB LED STRIP / COB-022

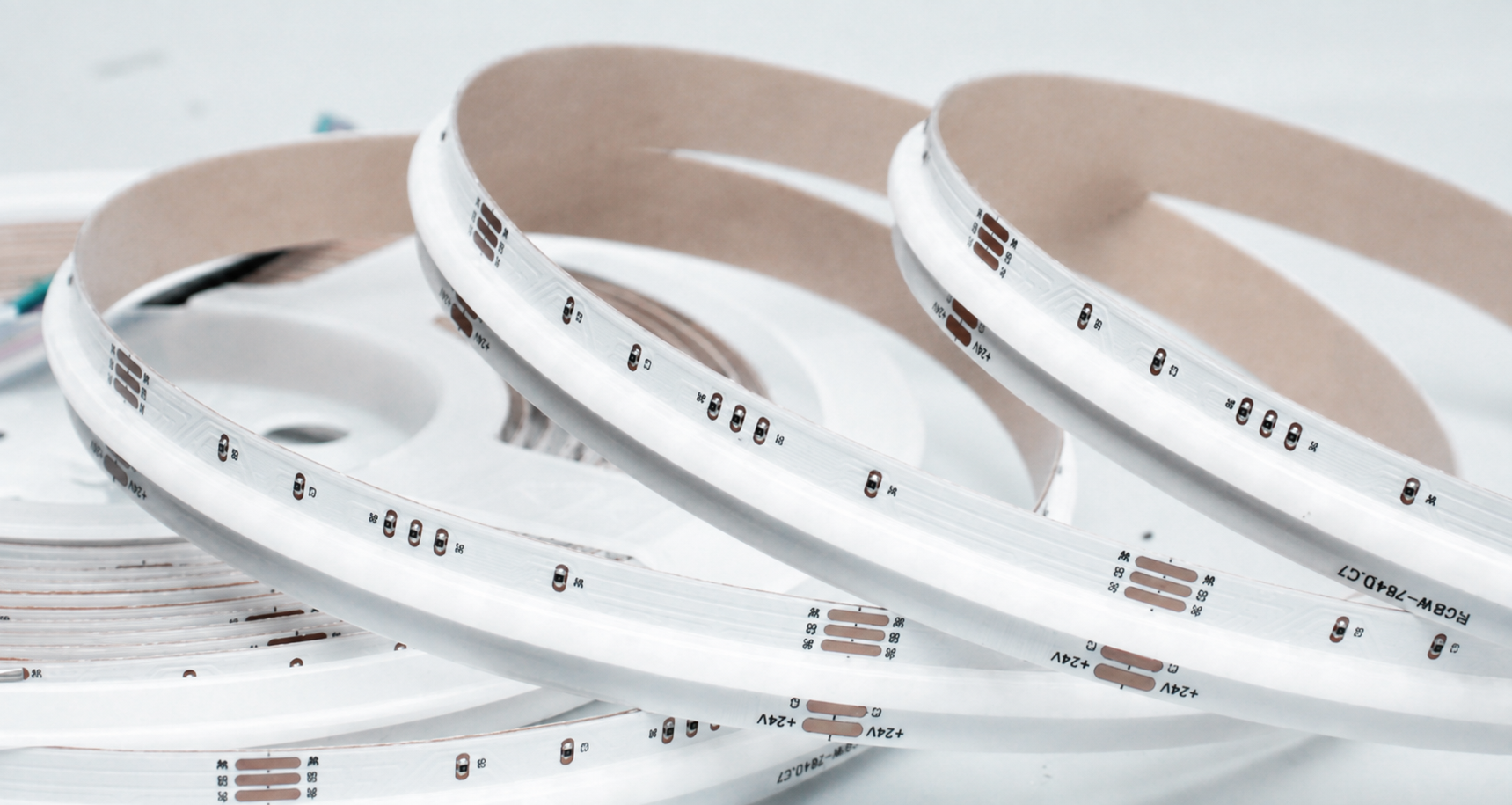

24V 12 mm RGBW COB LED Strip
784D RGBW · selectable white versions
24V rgbw COB LED strip, 784D RGBW · selectable white versions, with a 12 mm PCB and 70 mm cutting interval. White-light specifications: 3000K / 4000K / 6000K. Match the configuration to the installation, supply and controls.
At a glance784D
- Input voltage
- 24V
- PCB width
- 12 mm
- Cutting interval
- 70 mm
- Color rendering
- CRI >90
12 mm PCB
Check the installation space against the 12 mm PCB. 784D RGBW · selectable white versions.
70 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
RGBW
Stated RGB wavelengths: 620nm/520nm/460nm; white-light specifications: 3000K / 4000K / 6000K. Match the controls to the light-color configuration.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration24V · RGB + 3000KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
12 mm PCB
70 mm cutting interval
This model uses 7 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
784D RGBW · selectable white versions
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-022 |
|---|---|
| Product version | 784D RGBW · selectable white versions |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | RGBW |
| PCB width | 12 mm |
| Cutting interval | 70 mm |
| Stated power (source value) | 20W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 784PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| White-light color temperatures | 3000K / 4000K / 6000K |
| RGB wavelengths | 620nm/520nm/460nm |
BEFORE YOU ORDER
Selection & ordering
- The stated 20W power and 784PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 70 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- Select the RGBW white-light version at 3000K / 4000K / 6000K; this is distinct from RGB+tunable white.
